 | KXO-97 |  |  | |
 |
| Part-no.: 12.94219 |
|
| | Description | Value | |
| | frequency MHz | 20 | |
| | frequency stability at -20° ~ +70°C in ppm | ±50 | |
| | operating temperature in °C | -20 ~ +70 | |
| | storage temperature in °C | -40 ~ +85 | |
| | symmetry at 1,4V DC level or ½ Vcc level in % | 50 ± 10 | |
| | rise & fall time at TTL in ns max. | 6 | |
| | rise & fall time at CMOS in ns max. | 10 | |
| | "O" level at TTL in V max. | +0,4 | |
| | "O" level at CMOS in V max. | +0,5 | |
| | "1" level at TTL in V min. | +2,4 | |
| | "1" level Vcc at CMOS in V min. | -0,5 | |
| | input voltage Vcc in DC V ± tolerance in % | +5/±10 | |
| | input current in mA max. | 15 | |
| | output load at TTL in gates | 10 | |
| | output load at CMOS in pF | 50 | |
| | start up time max. in ms | 10 | |
| | tristate funcion | yes | |
| | enable/disable delay time in ns max. | 100 | |
| | random jitter in ps max. | 7 | |
| | peak to peak jitter in ps max. | 40 | |

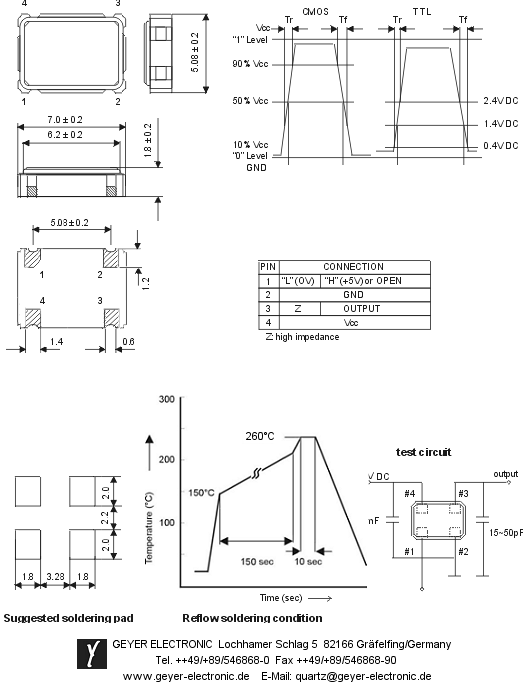

| | size l/w/h in mm | 7,0/5,08/1,8 | |
| | contents of reel in pcs. | 1000 | |
| | RoHS since production start | yes | |
| | - Datasheet pdf |
|
